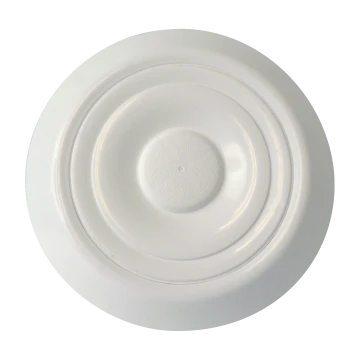

WGX — Primex True-Flow Ceiling Diffuser

The Primex True-Flow Ceiling Diffusers (WGX Series) are durable, highly-adjustable air supply or exhaust vents. The ceiling mountable Series provides whisperquiet airflow in an unobtrusive and aesthetically pleasing housing. Pair the 4-inch model with the EB4x90 for installation in tight spaces.

How to Specify

Provide the following information:

Model number
Diameter
Finish

Please note that all orders must be placed in full carton quantities.

How to Purchase

FAQs for GRDs

Features & Benefits

Dual flow: whisper quiet air supply or exhaust with four-wing screw to adjust air flow from 0-100%.
Increased air flow over the WG Series.
Patented design.
Added security of mounting screws through base flange.
Snap-on trim ring to hide mounting screws and hole trim is included.
Long-lasting durability with UV-protected, impact resistant, polymer resin.
WGX4S vent (with shorter collar) is compatible with Primex’s squeeze elbow accessory (EB4x90) and 4-inch diffuser sleeve (DS Series).
Easy to install and remove for duct and vent cleaning.

Sizes

4", 5", 6", 7", 8"

Color

Snow White

Part Number	Description	Carton Qty
1001WGX401S	4" White Adjustable Diffuser, short base	25
1001WGX401	4" White Adjustable Diffuser	25
1001WGX501	5" White Adjustable Diffuser	25
1001WGX601	6" White AdjustableDiffuser	25
1001WGX701	7" White AdjustableDiffuser	15
1001WGX801	8" White AdjustableDiffuser	15

Primex WG-WGX Installation Instructions

Primex WGX Technical Data

Primex WGX Series Spec Sheet

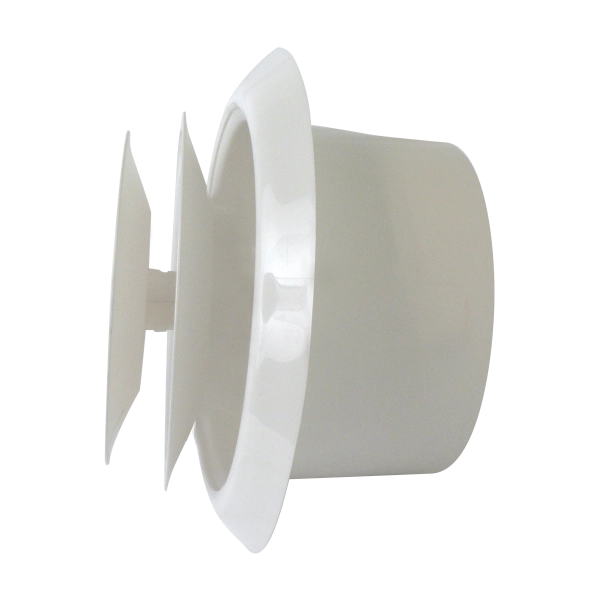

WGX Profile View
