96AFB — Steel Return Air Filter Grille, 35-degree Fixed Blade
- Steel construction
- Simplifies contractor installation
- Flush, removable face with concealed hinges
- Uses nominal 1" thick disposable filters (not included)
- 96AFB2 uses 2" thick disposable filters and is available by special order
- Equipped with adjustable filter retainers
- 3/4" spaced fins set at 35 degree
- Also available as 96AFBT T-Bar Fixed Bar Filter Grille
- Bright White finish
How to Specify

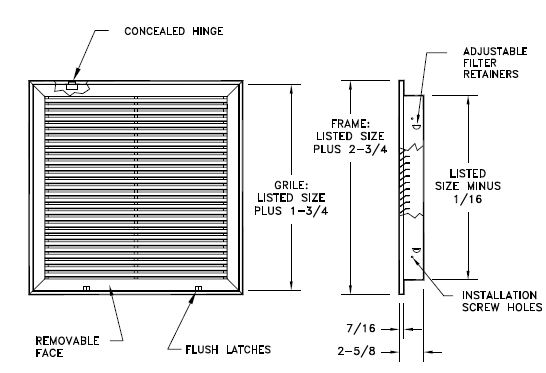

Use the engineering data files to determine the proper size to use for maximum performance. Refer to the submittal drawing for key product dimensions.
Available sizes (inches)
| Height | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 25 | 30 | 36 | |
| 10 | • | • | • | ||||||||
| 12 | • | • | • | • | • | ||||||
| 14 | • | • | • | • | • | ||||||
| 16 | • | • | • | • | |||||||
| 18 | • | • | • | • | |||||||
| 20 | • | • | • | • | • | • | • | • | |||
| 24 | • | • | • | • | • | • | |||||
| 25 | • | • | • | • | |||||||
| 30 | • | • | • | • | • | ||||||
| 36 | • |
