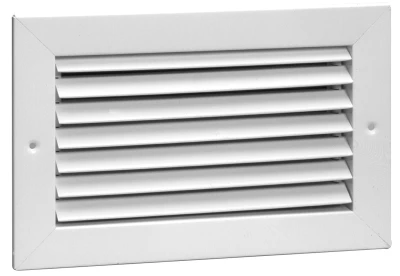

94A — Steel Return Air Grille, 35-degree Fixed Blade

All-steel construction
3/4" spaced fins set at 35 degree, horizontal face bars
Larger sizes available in multiple-piece construction
Also available as 94AT T-Bar Return Grille
Bright White finish

How to Specify

Use the engineering data files to determine the proper size to use for maximum performance. Refer to the submittal drawing for key product dimensions.

How to Purchase

FAQs for GRDs

Available sizes (inches)

	Height
Width		6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36
	4	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	5	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	6	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	8		•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	10			•	•	•	•	•	•	•	•	•	•	•	•	•	•
	12				•	•	•	•	•	•	•	•	•	•	•	•	•
	14					•	•	•	•	•	•	•	•	•	•	•	•
	16						•	•	•	•	•	•	•	•	•	•	•
	18							•	•	•	•	•	•	•	•	•	•
	20								•	•	•	•	•	•	•	•	•
	22									•	•	•	•	•	•	•	•
	24										•	•	•	•	•	•	•
	26											•	•	•	•	•	•
	28												•	•	•	•	•
	30													•	•	•	•
	32														•	•	•
	34															•	•
	36																•

Contact factory for sizes not listed.

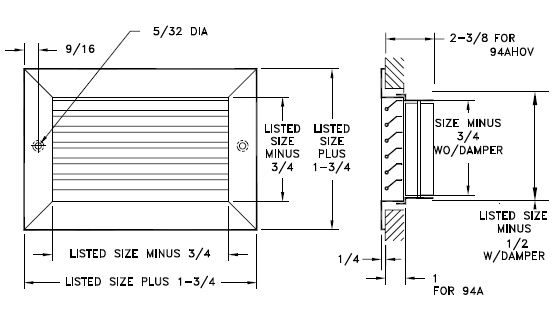

Submittal Data - 94A
