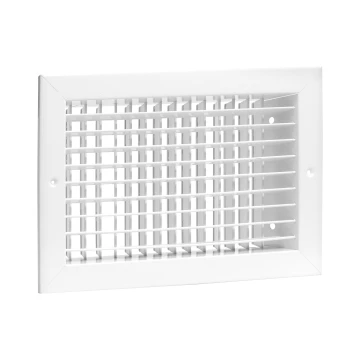

92HVO — Steel Double Deflection Grille, No damper

The 92HVO supply register features an all-steel construction with adjustable face bars that can be set to any desired deflection, offering both horizontal front bars and vertical second bars for versatile airflow control. Available in a bright white finish, this register comes in sizes ranging from a minimum of 6x4 to a maximum of 48x48 in one-piece construction and can be made in larger sizes using multiple pieces

Features

All-steel construction
Adjustable face bars may be set to any desired deflection
Horizontal front bars
Vertical second bars
Larger sizes available in multiple-piece construction
Bright White finish

How to Specify

Use the engineering data files to determine the proper size to use for maximum performance. Refer to the submittal drawing for key product dimensions.

How to Purchase

FAQs for GRDs

Available sizes (inches)

	Height
Width		6	8	10	12	14	16	18	20	22	24	26	28	30	32	34	36
	4	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	5	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	6	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	8		•	•	•	•	•	•	•	•	•	•	•	•	•	•	•
	10			•	•	•	•	•	•	•	•	•	•	•	•	•	•
	12				•	•	•	•	•	•	•	•	•	•	•	•	•
	14					•	•	•	•	•	•	•	•	•	•	•	•
	16						•	•	•	•	•	•	•	•	•	•	•
	18							•	•	•	•	•	•	•	•	•	•
	20								•	•	•	•	•	•	•	•	•
	22									•	•	•	•	•	•	•	•
	24										•	•	•	•	•	•	•
	26											•	•	•	•	•	•
	28												•	•	•	•	•
	30													•	•	•	•
	32														•	•	•
	34															•	•
	36																•

Contact factory for sizes not listed.

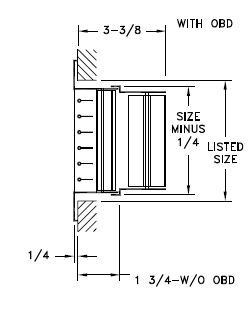

Submittal Data — 92HVO/92HVV
